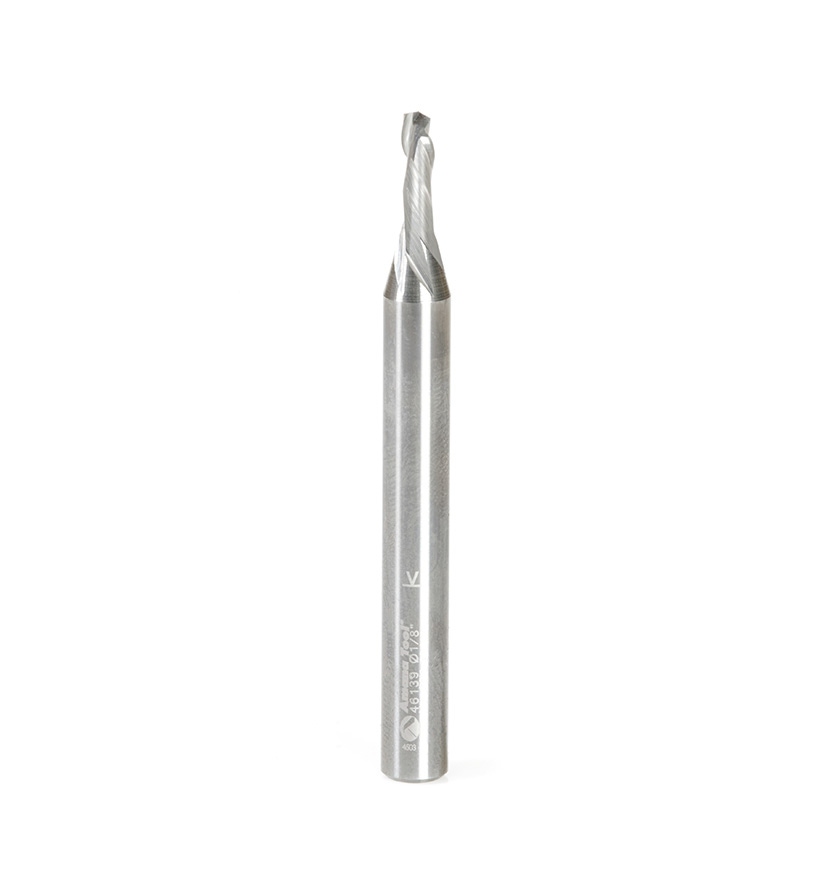

Do you have feeds and speeds for 46480? Thank you!! Amana Tool 46139 CNC Solid Carbide Compression Spiral 1/8 Dia x 3/8 Cut Height x 1/4 Shank x 2-1/2 Inch Long Single Flute Router Bit

Question

Do you have feeds and speeds for 46480? Thank you!! Amana Tool 46139 CNC Solid Carbide Compression Spiral 1/8 Dia x 3/8 Cut Height x 1/4 Shank x 2-1/2 Inch Long Single Flute Router Bit

Status: Open Oct 02, 2017 - 12:00 AM

Do you have the same question? Follow this Question

1answer

Answer

Oct 02, 2017 - 12:00 AM

Hardwood:

60" IPM @ 18,000 RPM

Chip Load Per Tooth: 0.0017"

Depth Per Pass: 1/16"

Softwood:

60" IPM @ 18,000 RPM

Chip Load Per Tooth: 0.0017"

Depth Per Pass: 1/16"

MDF:

120" IPM @ 18,000 RPM

Chip Load Per Tooth: 0.0033"

Depth Per Pass: 1/16"

Plywood:

60" IPM @ 18,000 RPM

Chip Load Per Tooth: 0.0017"

Depth Per Pass: 1/16"

View More Product Details

Do you have feeds and speeds for 46480? Thank you!!

Amana Tool 46139 CNC Solid Carbide Compression Spiral 1/8 Dia x 3/8 Cut Height x 1/4 Shank x 2-1/2 Inch Long Single Flute Router Bit

Solid carbide compression spiral bits are designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material. The single flute provides the highest possible feed rate.Excellent for Cutting:LaminateLaminated PlywoodMelamin... See More
