Recommended speeds and feeds and depth of cut for aluminum? I need to cut numerals from 0.185 thick aluminum... Amana Tool 51470-Z CNC SC Spiral O Single Flute, Aluminum Cutting 1/16 D x 1/4 CH x 1/8 SHK x 1-1/2 Inch Long Up-Cut ZrN Coated Router Bit with Mirror Finish

Question

Recommended speeds and feeds and depth of cut for aluminum? I need to cut numerals from 0.185 thick aluminum... Amana Tool 51470-Z CNC SC Spiral O Single Flute, Aluminum Cutting 1/16 D x 1/4 CH x 1/8 SHK x 1-1/2 Inch Long Up-Cut ZrN Coated Router Bit with Mirror Finish

Status: Open Feb 05, 2024 - 08:39 PM

Do you have the same question? Follow this Question

1answer

Answer

Feb 06, 2024 - 02:03 PM

The recommended starting feed and speed would be as follows:
35" IPM @ 18,000 RPM
Depth Per pass: 1/16"
Chip Load Per Tooth: 0.002"
Ramp Down: 17.5" IPM

View More Product Details

Recommended speeds and feeds and depth of cut for aluminum? I need to cut numerals from 0.185 thick aluminum...

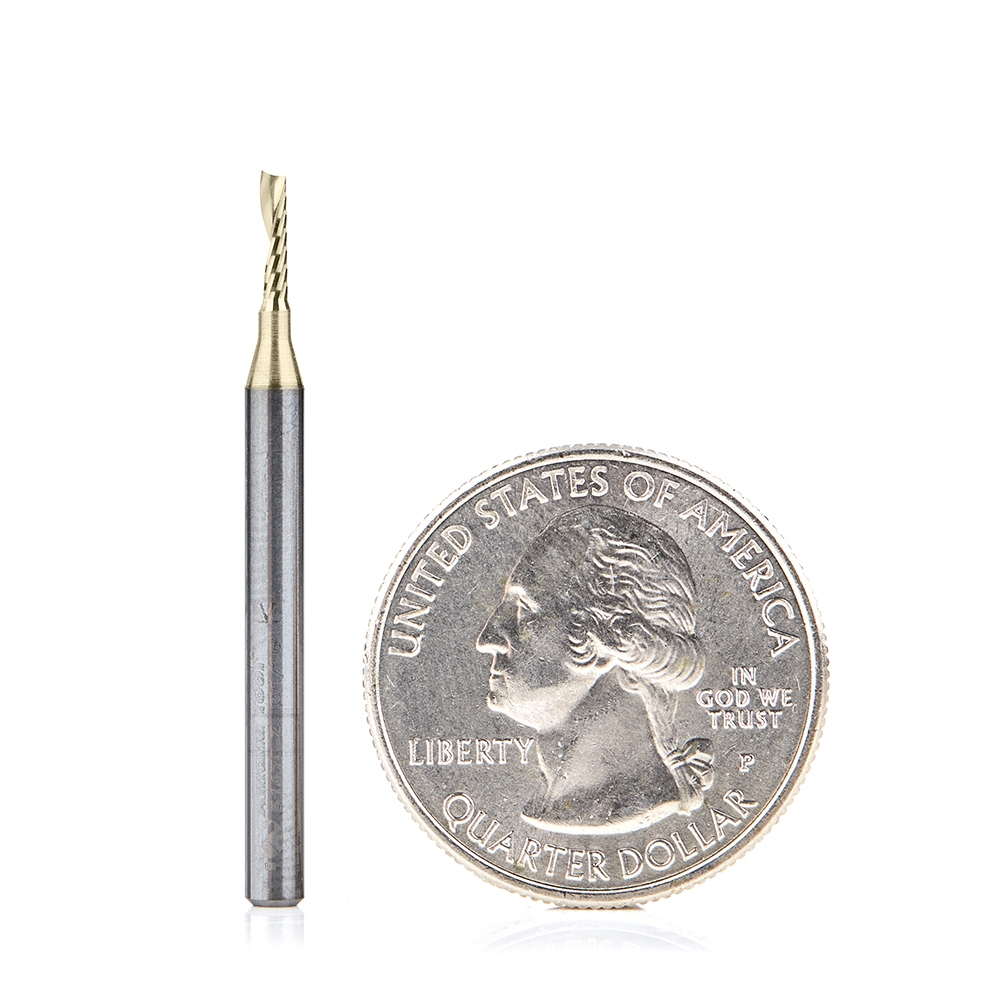

Amana Tool 51470-Z CNC SC Spiral O Single Flute, Aluminum Cutting 1/16 D x 1/4 CH x 1/8 SHK x 1-1/2 Inch Long Up-Cut ZrN Coated Router Bit with Mirror Finish

To be used only on CNC machines and routers with automatic feeding. Solid carbide spiral 'O' flute aluminum cutting ZrN coated router bits use the highest quality sub-micrograin carbide, have a special proprietary edge processing system and feature a super high polished cutting edge with a u... See More
