Answer
Jun 11, 2018 - 12:00 AM
You start with the following parameters:
175" IPM @ 18,000 RPM
Chip Load Per Tooth: 0.0050"
Ramp Down: 90" IPM
175" IPM @ 18,000 RPM
Chip Load Per Tooth: 0.0050"
Ramp Down: 90" IPM
Feed and speed ranges for CNC cutting birch plywood with cutter 45402 Amana Tool 49505 Carbide Tipped Corner Rounding 1/4 Radius x 3/4 Dia x 1/2 Cut Height x 1/4 Shank with 1/4 Inch Dia Lower Ball Bearing Router Bit
Hi,
I was wondering what the suggested range for the feed and speed of 45402 would be for cutting birch plywood on a CNC.
Thanks
I was wondering what the suggested range for the feed and speed of 45402 would be for cutting birch plywood on a CNC.
Thanks
Status:
Open Jun 09, 2018 - 12:00 AM
Do you have the same question? Follow this Question
1answer
View More Product Details

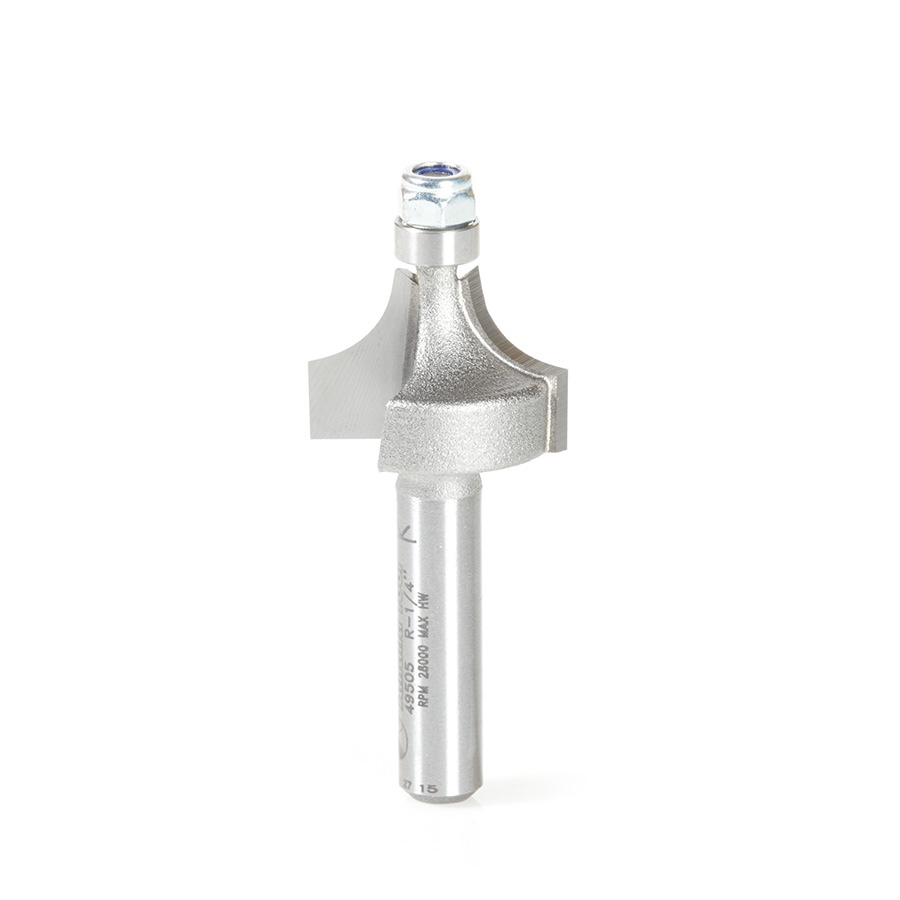

Amana Tool 49505 Carbide Tipped Corner Rounding 1/4 Radius x 3/4 Dia x 1/2 Cut Height x 1/4 Shank with 1/4 Inch Dia Lower Ball Bearing Router Bit
2 Flute & 4 Flute The router bits found on this page include the miniature 3/16" and 1/4" diameter ball bearings for routing tight spaces, the In-Tech™ insert replacement knife series, diamond tipped (PCD) bits as well as the standard 1/2" diameter ball bearings. The basic edge-fo...
