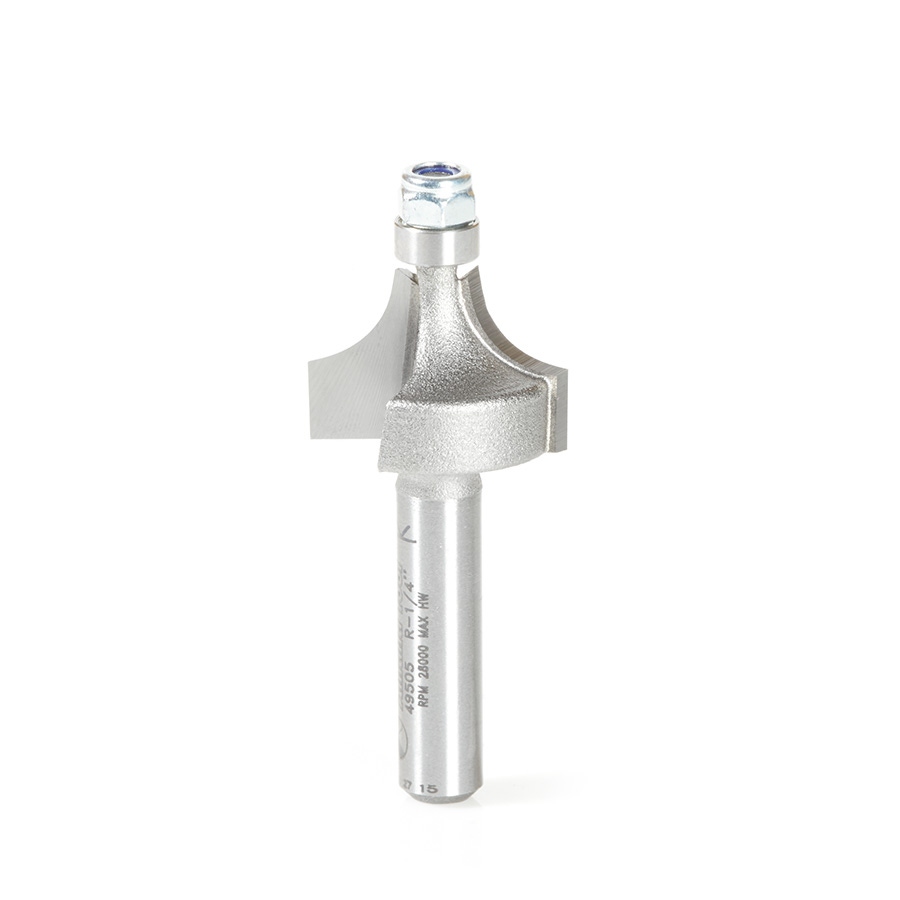

Amana Tool 49505 Carbide Tipped Corner Rounding 1/4 Radius x 3/4 Dia x 1/2 Cut Height x 1/4 Shank with 1/4 Inch Dia Lower Ball Bearing Router Bit
Hi,
I was wondering what the suggested range for the feed and speed of 45400 would be for cutting MDF and HDF on a CNC.
Thanks
Status:
Open Jan 04, 2019 - 12:00 AM
1answer
Answer
Jan 04, 2019 - 12:00 AM
45400 Feed and Speed:
MDF
298" IPM @ 18,000 RPM
Chip Load Per Tooth: 0.0083"
Depth Per Pass: 3/8"
Ramp Down: 149" IPM
