Answer
Aug 04, 2016 - 12:00 AM
Yes you will be able hit any angle besides the 7.5 degree increments, but might require you to use a digital protractor in order to achieve the exact degree the wish to achieve.
Does a 1° adjustment let me set any angle, or only 1° offsets from 7.5° notches? Insert Carbide Adjustable Chamfer CNC Router Bit
With the 1 degree adjustment, will I be able to hit any angle? Or is it a 1 degree adjustment away from the 7.5 degree increments that are notched.
Status:
Open Aug 04, 2016 - 12:00 AM
Do you have the same question? Follow this Question
1answer
View More Product Details

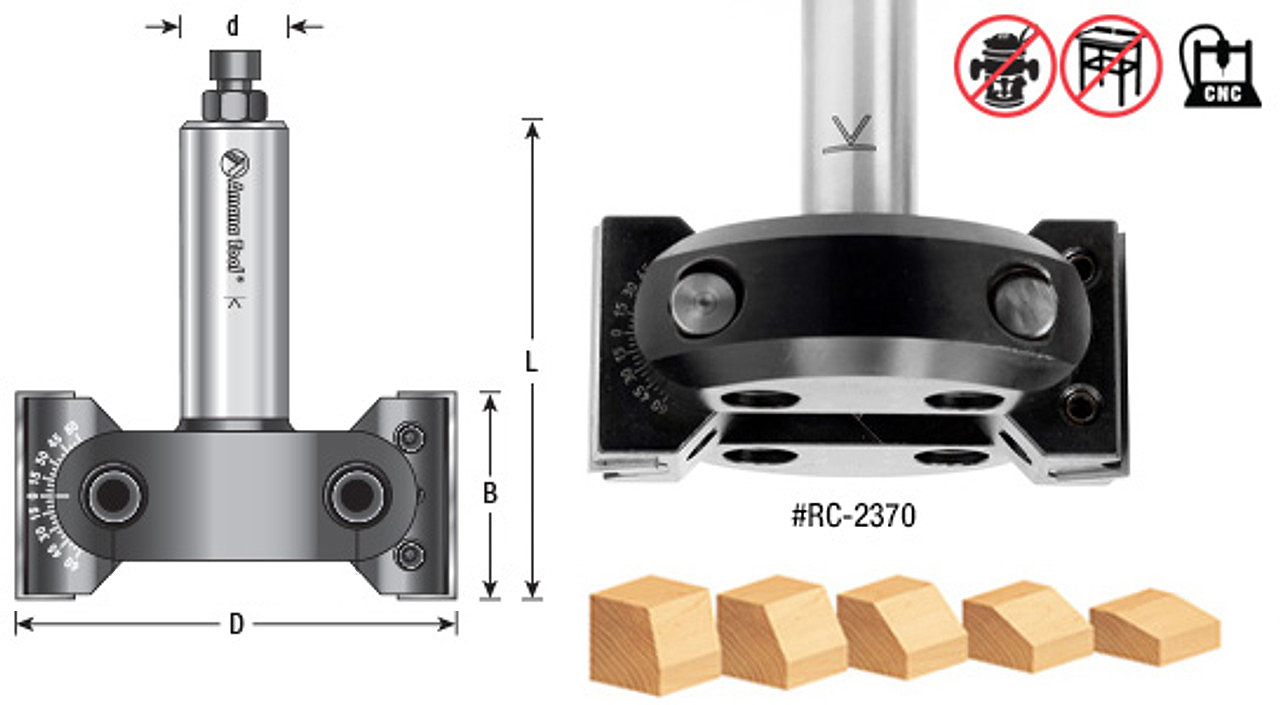

Insert Carbide Adjustable Chamfer CNC Router Bit
2-wing with solid carbide insert knives. Complete with two cutting flutes. Suitable for producing chamfer cuts at various angles in softwood, hardwood and man-made boards. Cutting angle can be adjusted in 7.5° steps by using a notched scale.Fine adjustment of 1° is also possible. For ...
See More
View Details
More Questions We've Answered Related to This Product
We’ve provided several answers to questions related to Insert Carbide Adjustable Chamfer CNC Router Bit , see some other helpful Q&A related to this product.
-
Question: What Spindle Speed and Cut feed should i program for this tool cutting at a 3 Degree angle?
Answer: A safe starting point would be 150" IPM @ 12,000 RPM
Chip Load Per Pass: 0.006"
Ramp Down: 75 IPM
Depth Per pass: 1/8"
View More Product Details
Insert Carbide Adjustable Chamfer CNC Router Bit
2-wing with solid carbide insert knives. Complete with two cutting flutes. Suitable for producing chamfer cuts at various angles in softwood, hardwood and man-made boards. Cutting angle can be adjusted in 7.5° steps by using a notched scale.Fine adjustment of 1° is also possible. For ...
