Recommended feeds, speeds and single vs multiple passes for cutting 3mm Dibond/Alucobond with a 573 00 Solid Carbide CNC Spiral O Flute, Aluminum Cutting Up-Cut Router Bits

Question

Recommended feeds, speeds and single vs multiple passes for cutting 3mm Dibond/Alucobond with a 573 00 Solid Carbide CNC Spiral O Flute, Aluminum Cutting Up-Cut Router Bits

Hi,

just receive a 573 00. As it's quite expensive, can i ask what is your recommended feeds and speeds for 3mm Dibond/alucobond.
What about the passes, multiple or single one?

Thanks for your time.

Status: Open Sep 26, 2017 - 12:00 AM

Do you have the same question? Follow this Question

1answer

Answer

Sep 26, 2017 - 12:00 AM

You can start at 40" IPM @ 18,000 RPM with a chip load per tooth of 0.002" and a depth per pass of 1.5mm.

You can also find more information on the following link:

https://www.toolstoday.com/pdf/Alumin...

View More Product Details

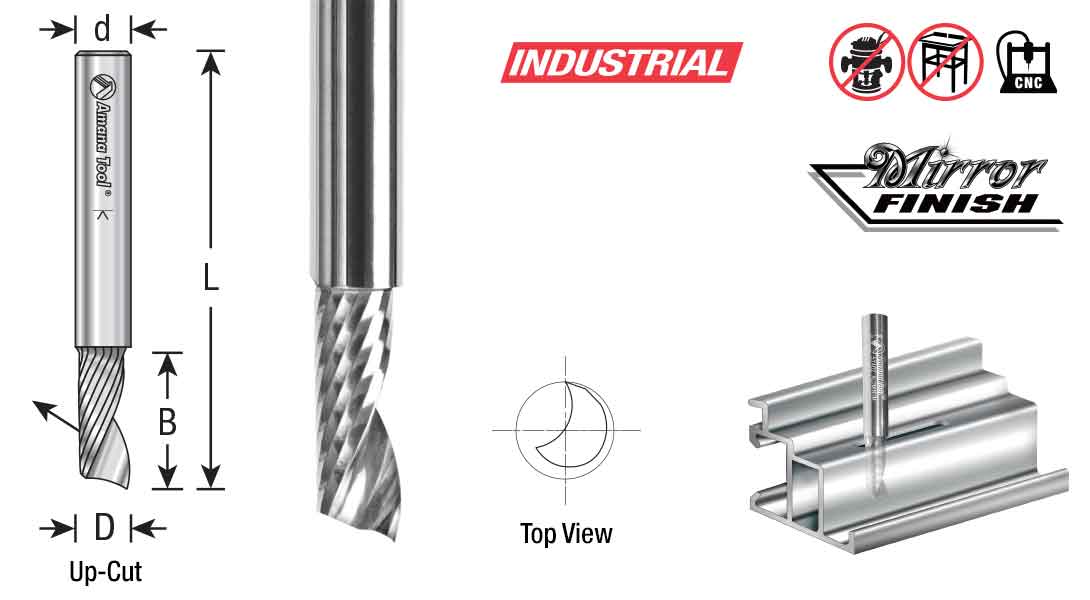

Recommended feeds, speeds and single vs multiple passes for cutting 3mm Dibond/Alucobond with a 573 00

Solid Carbide CNC Spiral O Flute, Aluminum Cutting Up-Cut Router Bits

To be used only on CNC machines and routers with automatic feeding. Solid carbide spiral 'O' flute aluminum cutting router bits use the highest quality sub-micrograin carbide, have a special proprietary edge processing system and feature a super high polished cutting edge with a unique “mirr... See More
