When you cut out the tools today sign from Aluminum plate. What was the depth for each pass, rpm, and IPM ?
It appears that you cut it with no cooling is that correct?
What alloy Aluminum and thickness did you use.

Status: Open Mar 19, 2016 - 12:00 AM

Do you have the same question? Follow this Question

1answer

Answer

Mar 21, 2016 - 12:00 AM

Sign Thickness: 1/4"
Feed Rate (IPM): 30IPM
Speed Rate (RPM): 10,000
Step Down: 1.6mm (4 passes) for total of 1/4"

Bit used in video:

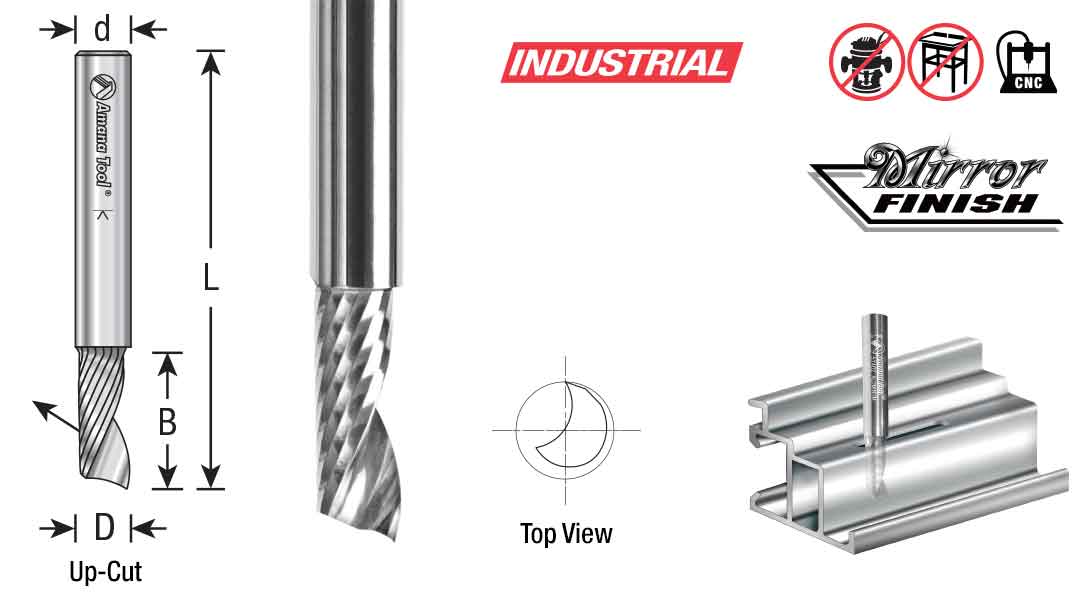

Amana Tool:registered: Solid Carbide Spiral 'O' Flute Aluminum Router Bits #51406

1) Eject chips up
2) Right hand helix/right hand cut
3) Mirror finish
4) Single-Flute

Starting Guideline Parameters

Please inspect cut and adjust accordingly.

Note: To prolong tool life when cutting aluminum, please lubricate or use air mist.

View More Product Details

Cutting "Tools Today" sign from aluminum: per-pass depth, RPM, IPM, cooling, alloy, plate thickness

Solid Carbide CNC Spiral O Flute, Aluminum Cutting Up-Cut Router Bits

To be used only on CNC machines and routers with automatic feeding. Solid carbide spiral 'O' flute aluminum cutting router bits use the highest quality sub-micrograin carbide, have a special proprietary edge processing system and feature a super high polished cutting edge with a unique “mirr... See More
