Answer
Aug 23, 2016 - 12:00 AM

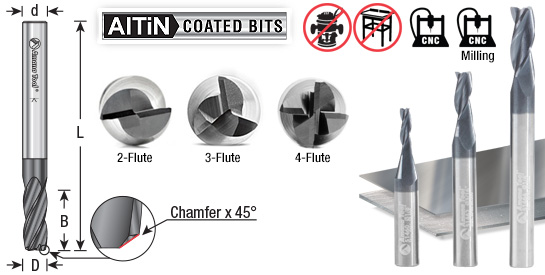

Bellow you will find recommended starting feed, speed and chip loads for cutting 1mm - 3mm thickness of brass and aluminum materials with Amana Tool numbers 51461, 51463, 51465 and 51467:
51461 (1/8" Diameter)
30" IPM @ 18,000 RPM
Chip Load Per Tooth: 0.0006
Step Down Per Pass: 1mm - 3mm
51463 (3/16" Diameter)
20" IPM @ 18,000 RPM
Chip Load Per Tooth: 0.0006
Step Down Per Pass: 1mm - 3mm
51465 (1/4" Diameter)
20" IPM @ 18,000 RPM
Chip Load Per Tooth: 0.0007
Step Down Per Pass: 1mm - 3mm
51467 (3/8" Diameter)
25" IPM @ 18,000 RPM
Chip Load Per Tooth: 0.0008
Step Down Per Pass: 1mm - 3mm
Inspect cut quality and adjust feed / speed accordingly.
51461 (1/8" Diameter)
30" IPM @ 18,000 RPM
Chip Load Per Tooth: 0.0006
Step Down Per Pass: 1mm - 3mm
51463 (3/16" Diameter)
20" IPM @ 18,000 RPM
Chip Load Per Tooth: 0.0006
Step Down Per Pass: 1mm - 3mm
51465 (1/4" Diameter)
20" IPM @ 18,000 RPM
Chip Load Per Tooth: 0.0007
Step Down Per Pass: 1mm - 3mm
51467 (3/8" Diameter)
25" IPM @ 18,000 RPM
Chip Load Per Tooth: 0.0008
Step Down Per Pass: 1mm - 3mm
Inspect cut quality and adjust feed / speed accordingly.
