Miniature ogee bit: diagram vs. block representation mismatch — which is correct? Use diagram shape. Amana Tool AMS-131 8-Pc CNC Signmaking Starter Router Bit Collection #II, 1/4 Inch Shank

In this miniature ogee bit the bit diagram and the block representation do not correspond, Which is the real shape? I would like to but the shape in the diagram but not the shape represented in the block.

Status: Open May 31, 2017 - 12:00 AM

Do you have the same question? Follow this Question

1answer

Answer

May 31, 2017 - 12:00 AM

Please confirm if you are referring to the following tool:

https://toolstoday.com/v-6303-mri0304...
If so the diagram does represent the profile of the tool.

View More Product Details

Miniature ogee bit: diagram vs. block representation mismatch — which is correct? Use diagram shape.

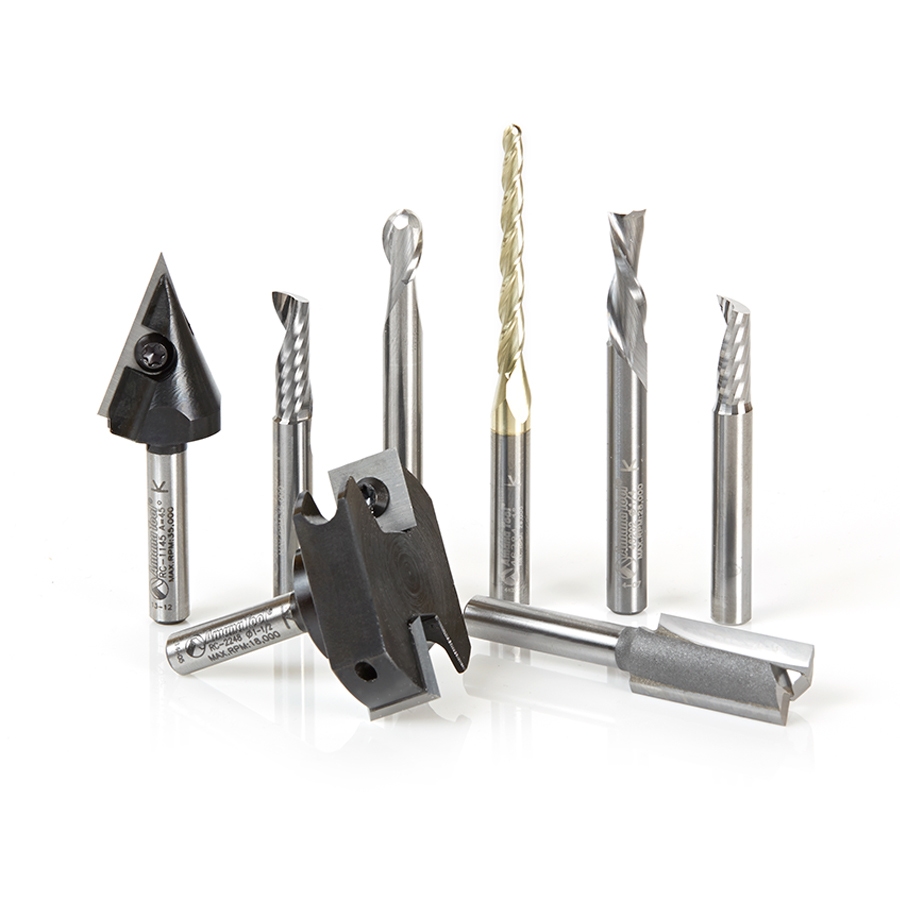

Amana Tool AMS-131 8-Pc CNC Signmaking Starter Router Bit Collection #II, 1/4 Inch Shank

Amana Tool® industrial 8-pc CNC signmaking starter router bit collection #II, stored in a solid wood showcase storage box with a plexiglass clear lid. This set is designed for the most demanding signmaking, lettering & engraving tasks. Cost of 8 BitsPurchased Individually $497.35 Set Sellin... See More
