Will #46227 cut 1/2″ MDF in 2 passes on a CNC? Feeds/speeds or use larger #46201? Solid Carbide Spiral Flute Plunge-2 Flute-Downcut Router Bits

Will # 46227 wrk for MDF and what would my feed and speeds be to cut 1/2 MDF in 2 passes if will cut in 2 passes or will I need to go to # 46201 bigger bit to cut 1/2 MDF in 2 passes. Also I'm using a cnc router.
Thanks

Status: Open Nov 17, 2016 - 12:00 AM

Do you have the same question? Follow this Question

1answer

Answer

Nov 17, 2016 - 12:00 AM

For cutting 1/2" MDF we recommend that you look at Amana Tool compression bit number 46180-K if you wish to stick with an 1/8" diameter:

https://toolstoday.com/v-13837-46180-...
Feed and Speed Recommendations:

160" IPM @ 18,000 RPM / Chip Load Per Tooth: 0.0047" / Depth Per pass: 1/4"

80" IPM @ 18,000 RPM / Chip Load Per Tooth: 0.0023" / Depth Per Pass: 1/2"

View More Product Details

Will #46227 cut 1/2″ MDF in 2 passes on a CNC? Feeds/speeds or use larger #46201?

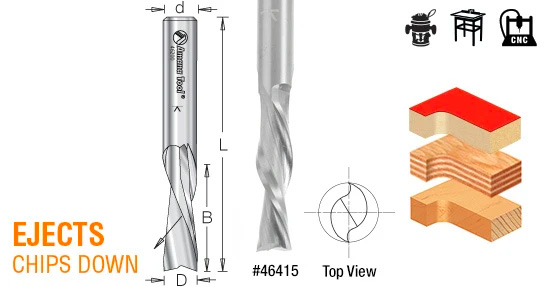

Solid Carbide Spiral Flute Plunge-2 Flute-Downcut Router Bits

Solid Carbide Spiral Plunge Router BitsSpiral bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean & accurate cut, while the augering action clears chips from the cut. The “down-cut” cuts from the surface down, leavin... See More
