Use of bit 48055-B to rough 1/2" phenolic HPL Compact Structural Laminates; recommended feed rate High Performance Solid Carbide Fiberglass and Composite Cutting AlTiN Coated Burr End Router Bits

Would this bit (48055-B) work for COMPACT (TM) STRUCTURAL LAMINATES BY FORMICA? The material is 1/2" Thick solid phenolic laminated with HPL . We need something to rough-out the shapes. The final edge profile is done with custom PCD tooling.
What feed rate should I use?

Status: Open Feb 23, 2018 - 12:00 AM

Do you have the same question? Follow this Question

1answer

Answer

Feb 23, 2018 - 12:00 AM

Unfortunately number 48055-B will not work, but you may want to try number 43607: https://toolstoday.com/v-14390-43607-...

Chip Load of .003" to .005" (per tooth) X 10,000 RPM should do the trick

View More Product Details

Use of bit 48055-B to rough 1/2" phenolic HPL Compact Structural Laminates; recommended feed rate

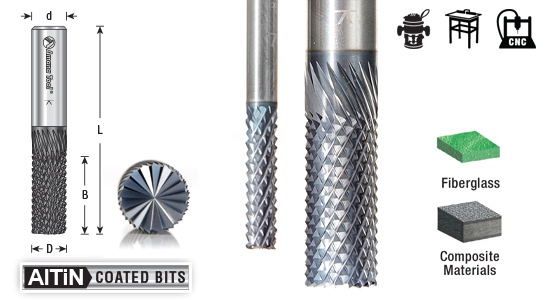

High Performance Solid Carbide Fiberglass and Composite Cutting AlTiN Coated Burr End Router Bits

Solid Carbide, Multi-Fluted End Face Router Bits for Finesse Grinding Process. Amana Tool® offers an array of unique extended life AlTiN coated router bits for all your fiberglass application needs. Premium Aluminum Titanium Nitride (AlTiN) coating provides double the hardness of cutting edges ... See More
