Answer
Dec 04, 2018 - 12:00 AM
40" IPM @ 18,000 RPM
Chip Load Per Tooth: .0010"
Depth Per Pass: 12mm
Ramp Dow: 20" IPM
Chip Load Per Tooth: .0010"
Depth Per Pass: 12mm
Ramp Dow: 20" IPM

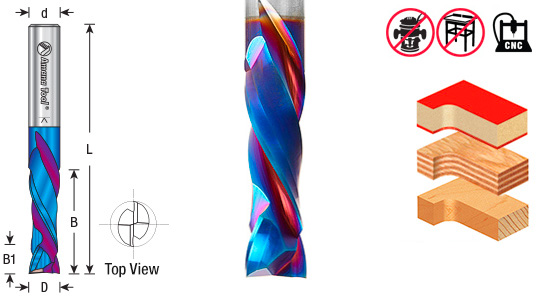

Feed rate & depth for 1/4" Spektra compression bit (46170-K) cutting 12mm plywood — full depth at 540 IPM? CNC Solid Carbide Spektra Extreme Tool Life Coated Compression Spiral Router Bits
So - if I was cutting 12mm plywood - using the 1/4" compression Spektra bit (46170-K) - what feed-rate and what depth would be OK to use? (considering the work-piece is extremely well clamped down and the machine is super solid/ rigid). Would it work to go full depth at 540 IPM? Thankyou.
Status:
Open Dec 04, 2018 - 12:00 AM
Do you have the same question? Follow this Question
1answer
View More Product Details
CNC Solid Carbide Spektra Extreme Tool Life Coated Compression Spiral Router Bits
Solid Carbide Spektra™ Extreme Tool Life Coated Compression Spiral CNC Router Bits with special unique carbide with nACo® nanocomposite coating for longer lifetime in abrasive material. Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications r...
See More
View Details
More Questions We've Answered Related to This Product
We’ve provided several answers to questions related to CNC Solid Carbide Spektra Extreme Tool Life Coated Compression Spiral Router Bits , see some other helpful Q&A related to this product.
-
Question: What is the effect of sharpening this bit? Does it reduce the effectiveness of the tool?
Answer: When re-sharpening these bits since they will only be sharpening the edge it will not lose effectiveness.
