Answer
Dec 22, 2023 - 03:07 PM
35" IPM @ 18,000 RPM
Chip Load Per Tooth: 0.002"
Depth Per pass: 1/16"
Ramp Down: 17" IPM
Chip Load Per Tooth: 0.002"
Depth Per pass: 1/16"
Ramp Down: 17" IPM

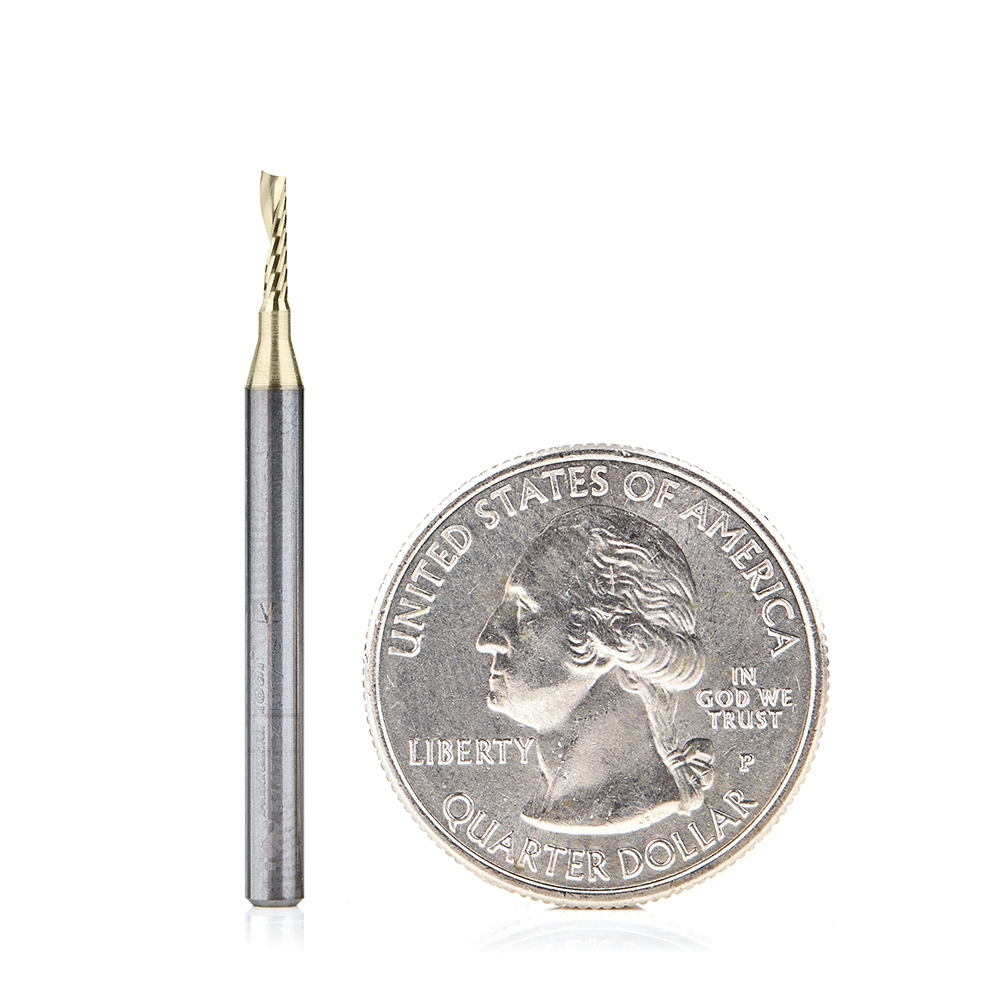

Optimizing RPM, feeds and DOC for milling 0.031" brass numerals — bits broke at 24,000 RPM. Amana Tool 51470-Z CNC SC Spiral O Single Flute, Aluminum Cutting 1/16 D x 1/4 CH x 1/8 SHK x 1-1/2 Inch Long Up-Cut ZrN Coated Router Bit with Mirror Finish
Recommended speeds and feeds and depth of cut for brass? I need to cut numerals from 0.031 thick brass. The first two snapped before the first numeral was finished. My doc was 0.017, feed 35 ipm, plunge 10 ipm, spindle 24,000 rpm, step over 10%. Using CoolTool II for lubricant. Thanks for any guidance.
Status:
Open Dec 21, 2023 - 02:07 PM
Do you have the same question? Follow this Question
1answer
View More Product Details
Amana Tool 51470-Z CNC SC Spiral O Single Flute, Aluminum Cutting 1/16 D x 1/4 CH x 1/8 SHK x 1-1/2 Inch Long Up-Cut ZrN Coated Router Bit with Mirror Finish
To be used only on CNC machines and routers with automatic feeding. Solid carbide spiral 'O' flute aluminum cutting ZrN coated router bits use the highest quality sub-micrograin carbide, have a special proprietary edge processing system and feature a super high polished cutting edge with a u...
See More
View Details
More Questions We've Answered Related to This Product
We’ve provided several answers to questions related to Amana Tool 51470-Z CNC SC Spiral O Single Flute, Aluminum Cutting 1/16 D x 1/4 CH x 1/8 SHK x 1-1/2 Inch Long Up-Cut ZrN Coated Router Bit with Mirror Finish , see some other helpful Q&A related to this product.
-
Question: Recommended speeds and feeds and depth of cut for aluminum? I need to cut numerals from 0.185 thick aluminum...
Answer: The recommended starting feed and speed would be as follows:
35" IPM @ 18,000 RPM
Depth Per pass: 1/16"
Chip Load Per Tooth: 0.002"
Ramp Down: 17.5" IPM
