Amana 49673/49674 suitable for tenon/groove on 1-1/8" stile & 1/4" flat panel classical stepped profile?
Classical Stile & Rail Cutters
I want to make a cabinet door to duplicate an existing door. The frame (stile and rail) is 1-1/8 " thick. The panel is 1/4" thick, and is flat material - not a raised panel. The profile is classical - the cross section view would look like a stair steps (2 or 3 small steps). This profile is the same on both the inside and outside of the door. I think that your Amana 49673 or 49674 set is as close as I can get to what I need. Here are my questions: Will one of these two sets work for the dimensions above? What bits do I need to buy to cut the tenon and groove?
Status:
Open Feb 09, 2016 - 12:00 AM
1answer
Answer
Feb 10, 2016 - 12:00 AM
If 49673 and 49674 are the closest you can get then you can use these to make your cope and stick.
To make the tenon you can use 55400 which is a 1/4" tongue and groove.
https://toolstoday.com/v-6155-55400.html
View More Product Details

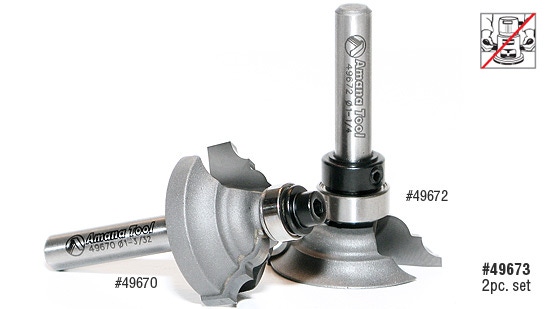

Classical Stile & Rail Cutters
Also known as stile and post router bits.Unique series of matching stile & rail cutters with 1/4" shanks. Many applications, such as doors, windows, moldings, etc. can be performed. Tenon & groove must be cut separately. Our Carbide-Tipped Profile Cutters are a unique and versatile...
